on & off grid solar system

51,2H LiFePo4 lítium -ion akkumulátor 100ah 5kwh lítium akkumulátor az otthoni energiatároláshoz

Otthoni energiatárolás 51,2H LiFePo4 lítium iorn
  • típus:

    Off-Grid


Funkció:
Jó magas hőmérsékletű teljesítmény
Biztonságos lítium -vas -foszfát technológia
Nagy energiasűrűség és konverziós hatékonyság
Élettartam: 2000 ciklusidő
Környezetbarát, nehézfémek nélkül
Beépített akkumulátorkezelő rendszerrel kiegészítve
Ehhez a rendszerhez váltakozó áramú és napelemes töltőket használhat
Alacsony önkisülési arány
Egyszerű telepítés, lehet szabványos szekrényben vagy falra szerelhető
Beépített automatikus védelem a túlmelegedés, túlkisülés & túlmelegedés esetén
Nagy energiasűrűség 120-130 kWh/kg, egyenletes kisülési sebesség, miközben megtartja a magas energiakapacitást.
Nagyobb rugalmasság: A moduláris felépítés lehetővé teszi a telepítést
Jó nagy sebességű kisülés és kiváló stabilitás
Intelligens chip kialakítás, kiváló akkumulátor tárolókapacitás

Alkalmazások :

Az akkumulátor ipari, kereskedelmi vagy lakossági célokra használható

Az akkumulátor modulok vagy egységek Wh -tól Mwh -ig vannak csatlakoztatva a megújuló energiaforrások rendszeréhez

Energia tároló rendszer

Napenergia tárolás

Szolár utcai világítás

Elektromos jármű (EV)

Orvosi

Telecom

Robotikus

UPS

Tétel
Leírás
típus
lítium akkumulátor
Feszültség
51,2V
Névleges kapacitás
100Ah (0,2C/25 ° C) (minimum: 98Ah)
Energia
4200wh
Üzemi feszültségtartomány
42V- 58,4V (tipikus: 51,2V)
Töltési feszültség
56,0V ± 1,0V
Kisülési lekapcsolási feszültség
42V ± 2,0V
Töltőáram
20A
Töltési áram (max.)
30A
Folyamatos áram
50A
Kisülési áram (max.)
100A
Hónap önkisülés
≤3,5%

Csomagolás

lithium iron battery

Projekt

lithium iron battery

Kapcsolódó termékek
5000W Portable Power Station
The 5000W portable power station equipped with a super battery capacity, high power output,and various outlets to support multiple devices,comes with advanced features. High-performance Extra LiFePO4 Battery,this battery gives you an extra boost of power
3.2V 280Ah Cell
The LiFePO4 Battery Cell is a high-performance, long-lasting, and versatile energy storage solution with advanced safety features. Specification Typical capacity:280Ah @ 0.25C discharge Typical Voltage:3.2V Discharge current 0.5C with 2.5V cut off. (25±2)℃ AC Impedance Resistance:0.17±0.05m Ω Standard charge and discharge: Charge/Discharge Current 0.5C/0.5C Discharging Temperature:-30℃~60℃ Reference Continuous/Pulse Charge/Discharge Current Map Storage Temperature:- 20~45℃ Battery can work at a specified temperature range with capacity loss intolerance. Cycle Life:≥6000 times Typical dimension:174*207*72mm Weight:>5.44Kg

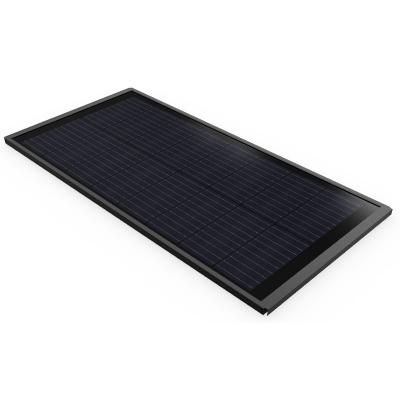

Solar Panels
Swt-power Solar is one of leading global manufacturers of solar modules and solar systems. With fully automated production line which ensures the quality is strict and stable. We can produce market mainstream solar modules, including large size, MBB, high efficient single glass and double glass modules both mono and poly, full cells and half cut cells. All our modules have TUV/CES/GSINMETRO/CQC/ISO9001/ISO14001 and  OHSAS18001 Certifications. Our solar modules have been exported to Europe, Vietnam, Brazil, Morocco and Many other markets.
solar energy system
3000 Wattos alacsony frekvenciájú hálózaton kívüli rendszer és osztott fázisú 120 V 240 V kimenet
3.2V 280Ah Cell
The LiFePO4 Battery Cell is a high-performance, long-lasting, and versatile energy storage solution with advanced safety features. Specification Typical capacity:280.0 Ah @ 0.5C discharge Discharge current 0.5C with 2.5V cut off. (25±2)℃ Typical Voltage:3.2V Discharge current 0.5C with 2.5V cut off. (25±2)℃ AC Impedance Resistance:≤0.25mΩ Standard charge and discharge: Charge/Discharge Current 1C/1C Pulse Charge/Discharge Current (30s):2C/2C The maximum charge current of the battery does not exceed 1C under 0℃~45℃. Charging Temperature:0℃~60℃ Reference Continuous/Pulse Charge/Discharge Current Map Storage Temperature:- 20~45℃ Battery can work at a specified temperature range with capacity loss intolerance. Cycle Life:≥6000 times Typical dimension:173.8*71.5*207.4mm Weight:5.20±0.22kg
Solar Panels
Swt-power Solar is one of leading global manufacturers of solar modules and solar systems. With fully automated production line which ensures the quality is strict and stable. We can produce market mainstream solar modules, including large size, MBB, high efficient single glass and double glass modules both mono and poly, full cells and half cut cells. All our modules have TUV/CES/GSINMETRO/CQC/ISO9001/ISO14001 and  OHSAS18001 Certifications. Our solar modules have been exported to Europe, Vietnam, Brazil, Morocco and Many other markets.
Three-phase Hybrid Inverter grid tie inverter
This three phase high voltage inverters series is a high quality smart hybrid solar inverter which can convert solar energy to AC energy and store energy into battery. Worked with high voltage battery both lead-acid and lithium lifepo4 type, the mppt solar hybrid inverter has multiple application modes such as self-consumption, peak shaving and valley filling, and backup power supply. Depends on the PV energy and user preferences. It is compatible with single-phase load and three-phase load, support 100% unbalanced load, extending the application scenarios.
